Product details on this page come from Jacob Intercom's product page for this model. Contact us for a price, installed.
Main features

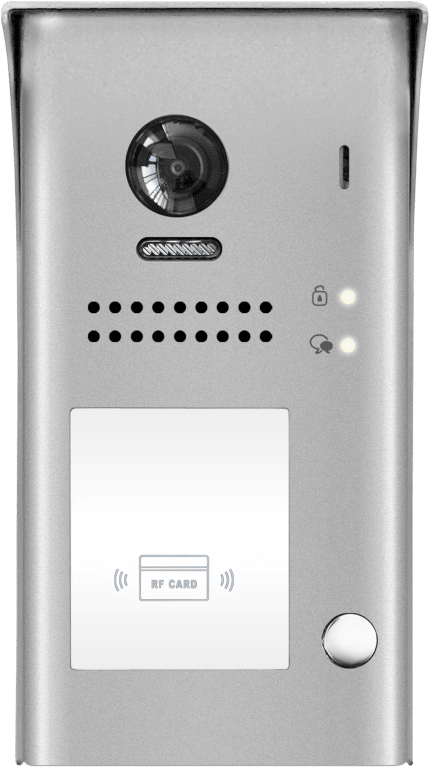

- FE type entry panels allow digital pan, tilt and zoom on monitors that support it.
- Built-in card/fob reader for unlocking the entry, with proximity access control.
- Non-polar, 2-wire system for simplified installation.
- Works with other 2-wire components and monitors, such as the DX-471.
- 1, 2, 3 or 4 button models.
- Terminals to add a motion detector, to activate the panel or turn on a light.
- Auto-sensing LED light for clear night vision.
- Zinc alloy housing with electroplating and polishing treatment.
- Surface mounting with rain shield. Weather resistant, IP54 rated.
- Large back-lit name plate, and indicator lights during unlock and talk.
Models
| Model | Camera | For |
|---|---|---|
| DT-607FE/ID/S1/RH | 170° fish-eye | Home, villa or business |
| DT-607FE/ID/S2/RH | 170° fish-eye | Two apartments |
| DT-607FE/ID/S3/RH | 170° fish-eye | Three apartments |
| DT-607FE/ID/S4/RH | 170° fish-eye | Four apartments |
| DT-607C/ID/S1/RH | 105° | Home, villa or business |
| DT-607C/ID/S2/RH | 105° | Two apartments |
| DT-607C/ID/S3/RH | 105° | Three apartments |
| DT-607C/ID/S4/RH | 105° | Four apartments |
The DT-607FE series uses a 170° fish-eye camera and works with monitor stations that support digital pan, tilt and zoom. The DT-607C series uses a 105° camera. An AB-607 angled bracket is available for mounting.
Why 2-wire matters
Because the DT-607 runs on two non-polar wires, it can often use wiring that is already in the building. That makes it a practical way to upgrade an older audio intercom to video without opening walls. We test the existing wire before we quote.
Installation
Jacob Intercom installs DT-607 panels with matching 2-wire monitors, connects the door release and card/fob access, and tests every apartment before we leave.
Common questions
What's the difference between the FE and C models?
The FE models have a 170° fish-eye camera and support digital pan, tilt and zoom on compatible monitors. The C models have a 105° camera.
How many apartments can one panel call?
DT-607 panels come in 1, 2, 3 and 4 button models, for a home or business up to four apartments.
Can residents open the door with a fob?
Yes. The panel has a built-in card/fob reader for unlocking the entry.
